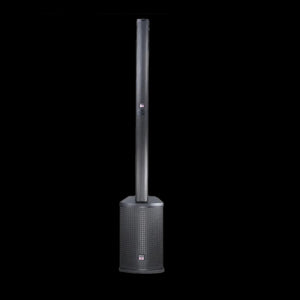

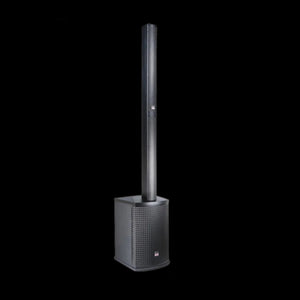

The self-powered all-in-one Studiomaster Direct 121 solution is an ultra-compact, powerful vertical array system for versatile use. The Direct 121 includes 6 x 3 Inch mid frequency transducers for perfect clarity of instruments and voice. The 1 Inch high precision driver delivers dynamic and clear highs. The subwoofer is featured by one professional 12 Inch transducer for well-defined lows. The on-board 4-channel mixer enables for a wide range of applications. Inputs to connect microphones, instruments. It also offers bluetooth to stream from mobile devices sources. The built-in DSP with it´s graphic display upgrades your sound to high definition audio quality.

Self-powered 3-way system for high definition sound (122 dB max.)
Rated power - 600 Watts RMS Total

6 x 3 Inch plus 1 x 1 Inch precision transducers
120° x 30° ultra wide sound coverage (HxV)
12 Inch subwoofer for deep and powerful lows
Class-D amplifier modules for low distortion and excellent sound, powerful SMPS (100 V – 240 V)
Extensive 4-channel mixer. 2 x MIC/LINE input (adjustable), 1 x RCA stereo input, 1 x HI-Z instrument input. 2 x XLR line ouput, 1 x SUB LEVEL controller for quick access
Powerful 24-bit DSP with display, ONE CONTROL encoder, storable presets, digital gain control, high-pass filter, delay, dual-channel limiter and equalization
Digital delay for delay zones up to 100 m (in steps of 0.25 m)
Bluetooth Connectivity

Specifications:

Direct Vertical Array:
MF - 6 x 3" mid-range speaker
HF - 1 x 1" compression driver
Coverage (HxV) - 120° x 30°
Rated Power - 180 W (RMS)
Rated Impedance - 6 Ohms
Dimensions(WxHxD) - 108 x 835 x 98 mm
Net Weight (kg) - 3.9kg

Direct 12AX Mixer:
Mixer - analogue
Inputs - 4 Channels (2x Mic/Line, 1x Hi-Z, 1x RCA & Bluetooth)
Input connectors - 2x XLR jack combo, 1x UNBAL TRS Jack, 1x RCA stereo
Input impedance - 10 k Ohms Balanced, 470 k Ohms Unbalanced
Output connector - 2x Line link XLR, 1x Main out XLR (pre DSP)

Amplifier:
Rated power - 2 x 300 W RMS
Frequency range - 20 Hz - 20 kHz
DSP connection - 24 bit (1 in-2 out)

Subwoofer:
Speaker type - 1 x 12" transducer
Rated Power - 300W (RMS)
Rated Impedance - 4O
Dimensions (WxHxD) - 358*616*447mm
Net Weight (kg) - 23kg
